Riser Installation

Riser Installation

Risers play a critical role in offshore oil and gas production systems, as they connect the subsea wellhead to the surface facilities, allowing the flow of hydrocarbons and other fluids. The installation of risers is a complex and carefully planned operation that involves several steps. Here is a general overview of the riser installation process:

  1. Pre-installation surveys and engineering: Prior to riser installation, comprehensive surveys of the seabed and subsea infrastructure are conducted to gather essential data. This information helps engineers and operators determine the optimal routing and configuration of the risers. Factors such as water depth, environmental conditions, seabed characteristics, and existing infrastructure are considered during the engineering phase.

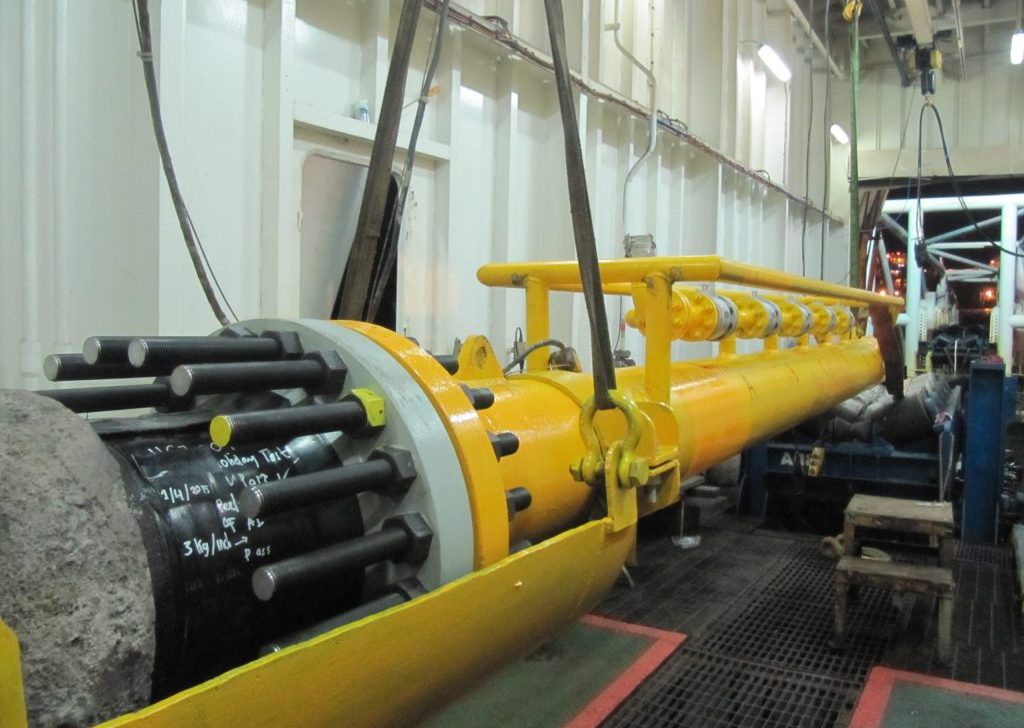

  2. Riser fabrication and preparation: The risers are fabricated onshore based on the project specifications and requirements. They are constructed using specialized materials that can withstand the harsh offshore environment, including steel, composite materials, or flexible pipes. The risers are tested and inspected to ensure they meet industry standards and project-specific criteria.

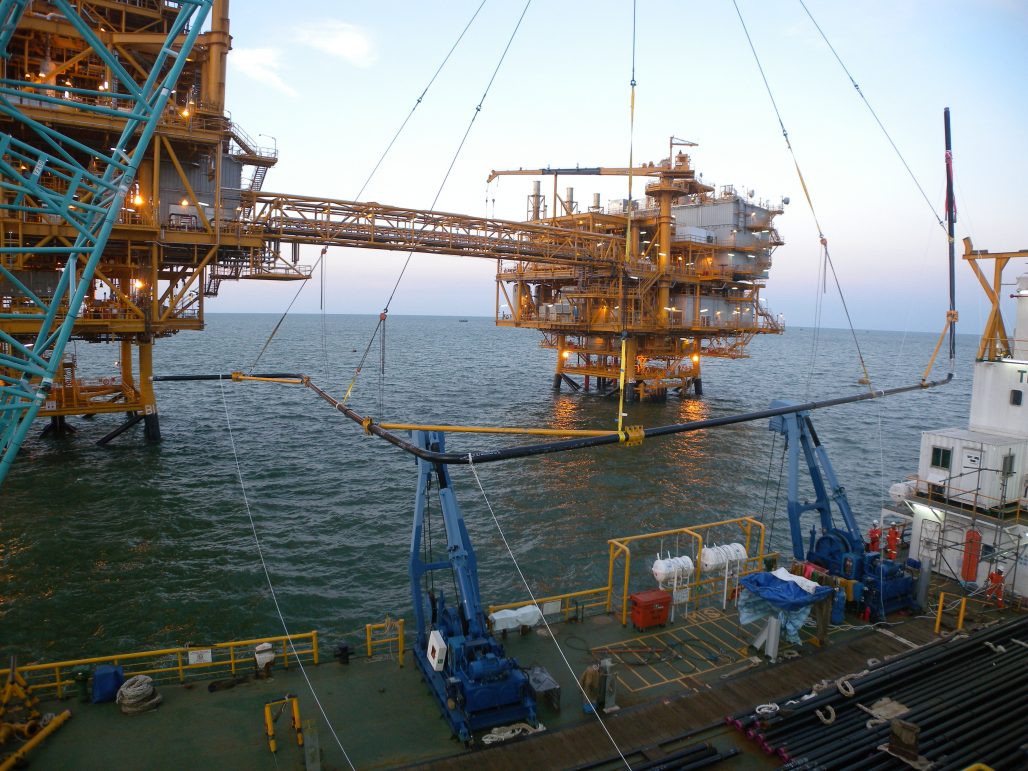

  3. Riser deployment: There are several methods for deploying risers, depending on the installation vessel and the project requirements. Common methods include:

    • S-Lay: In this method, the riser is laid in a catenary shape on the seabed using a lay barge equipped with a stinger. The stinger supports and guides the riser as it is lowered to the seabed.

    • J-Lay: In the J-Lay method, a specialized vessel with a J-shaped tower is used. The riser is prefabricated on the vessel and then lowered and welded as the vessel moves forward. The J-shaped tower provides support and control during the installation.

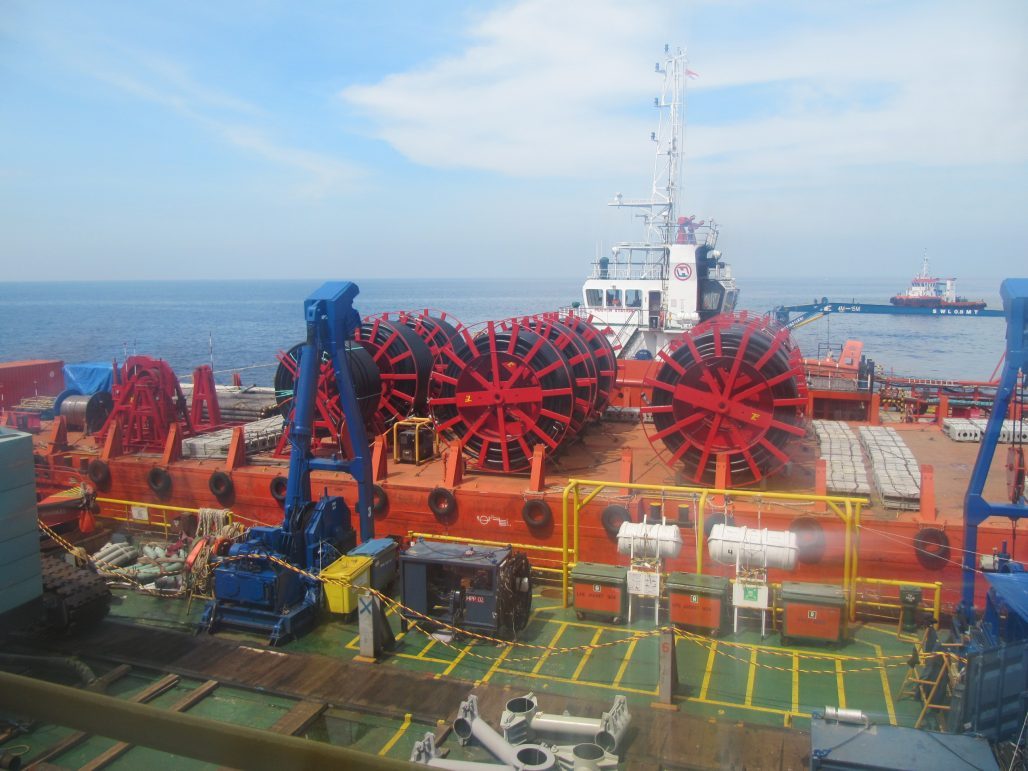

    • Reel-Lay: This method involves spooling the riser onto a large reel on a vessel and then deploying it from the reel onto the seabed. It offers flexibility in installation and is often used for flexible or composite risers.

  4. Connection to subsea infrastructure: Once the risers are deployed and positioned on the seabed, they are connected to the subsea infrastructure, including the wellhead and other subsea equipment. This connection is typically made using diverless or remotely operated vehicles (ROVs) equipped with specialized tools for subsea operations. The connection may involve flanges, clamps, or other mechanical connectors, depending on the design of the riser and the subsea equipment.

  5. Testing and commissioning: After the risers are installed and connected, they undergo thorough testing to ensure integrity and functionality. Pressure tests, leak tests, and other inspections are conducted to verify the performance of the risers and their connections. Once the testing is successfully completed, the risers are commissioned and ready for production operations.

It's important to note that the installation process may vary depending on project-specific requirements, water depth, environmental conditions, and the type of riser being installed. Additionally, safety is a paramount consideration throughout the entire installation process, with strict adherence to industry regulations and best practices to protect personnel and the environment
